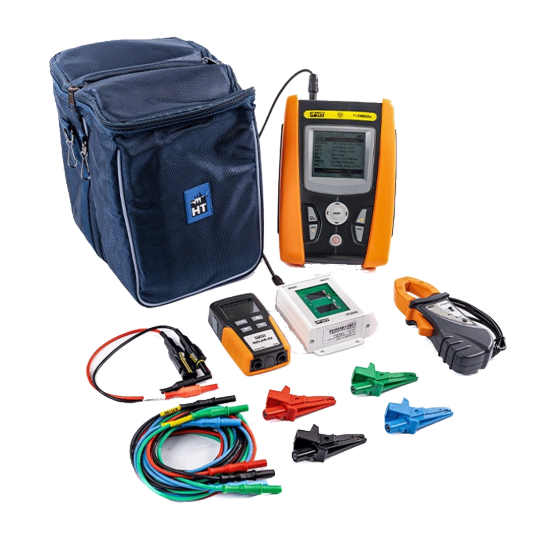

TIS PVCHECKS ULTIMATE: Complete PV Commissioning & Performance Kit (1000V)
The TIS PVCHECKS ULTIMATE kit, as described by resellers like Green2Go, offers a full suite of tools for commissioning tests and performance analysis on photovoltaic systems up to 1000V DC / 15A. Built around the reliable TIS PVCHECKS multifunction tester, this 'Ultimate' package bundles key accessories including the SOLAR-02 remote unit, HT304K reference cell, and a DC clamp attachment.
PVCHECKS Tester Core Capabilities
The foundation of the kit is the PVCHECKS tester, designed for IEC/EN62446 compliance:
- Safety Tests: Measures Insulation Resistance (250/500/1000V) with multiple modes and Continuity of protective conductors (>200mA).
- Functionality Checks: Measures Open Circuit Voltage (Voc up to 1000V) and Short Circuit Current (Isc up to 15A) with rapid IVCK checks and OK/NO results.
- Data Management: Stores up to 999 results, includes a 30-module internal database, and connects to PC via optical/USB for use with TopView software.
Included Accessories for Enhanced Analysis
This kit adds the components needed for comprehensive performance assessment:
- SOLAR-02 Remote Unit: Connects wirelessly (RF) to the PVCHECKS tester. It serves as the interface for the irradiance cell and temperature probe, enabling environmental data logging during efficiency tests.
- HT304K Reference Cell: Measures solar irradiance (W/m²), connecting to the SOLAR-02 unit. Crucial for extrapolating measurements to Standard Test Conditions (STC) and for DC efficiency calculations.
- Temperature Probe (Assumed Included): Measures module and/or ambient temperature, connecting to the SOLAR-02. Essential for temperature compensation in efficiency calculations (confirm exact probe model if needed).
- Clamp Attachment (DC Current Clamp): Measures the DC current output from the PV array, connecting to the PVCHECKS tester. Required for calculating DC power and efficiency. (Confirm clamp model and range if specific details are needed).
Why Evergy Recommends This Product
The PVCHECKS ULTIMATE kit is an excellent all-in-one package for technicians working primarily on residential or commercial systems up to 1000V who need both commissioning safety checks and performance analysis capabilities.
- Complete Kit: Provides the tester and essential accessories for comprehensive testing, including DC efficiency analysis relevant to system payback and tariff performance.
- IEC/EN62446 Compliant: Covers all necessary commissioning tests.
- Cost-Effective Bundle: Offers convenience and potential savings compared to purchasing items separately.
- Proven Platform: Based on the reliable and widely used PVCHECKS tester architecture.
Technical Highlights Summary
Based on the PVCHECKS base unit and included accessories:
- Max Test Voltage/Current (PVCHECKS): 1000V DC / 15A DC
- Key Tests: Insulation (up to 1000V), Continuity (>200mA), Voc, Isc, DC Efficiency, Irradiance, Temperature.
- Connectivity: Optical/USB (Tester); RF (SOLAR-02 to Tester)
- Safety Category (Tester): CAT III 300V to earth, Max 1000V between inputs
Refer to the PVCHECKS instruction manual for base unit specifications.
What's Typically Included?
According to reseller information, the kit usually contains:
- PVCHECKS Multifunction Tester
- SOLAR-02 Remote Unit
- HT304K Reference Cell
- DC Current Clamp
- Temperature Probe (model may vary)
- Standard Test Leads (likely KITPVMC3, KITPCMC4, KITTERRNE)
- PC Software (TOPVIEW2006) & Optical/USB Cable (C2006)
- Soft Carrying Bag (BORSA2051)
- Calibration Certificate, Manuals
*Please confirm the exact contents with the supplier before purchasing.*
Commission and Analyse Your PV Systems Effectively
The TIS PVCHECKS ULTIMATE kit equips you for thorough commissioning and performance evaluation of 1000V solar installations. Ensure safety, compliance, and optimal operation. Also, check our selection of compatible solar inverters and solar batteries. Need help? Reach out to Evergy.
